SYS-620C-TN12R

سرور سوپرمیکرو CloudDC مدل SYS-620C-TN12R

سرور ۲ یونیت CloudDC با ۱۲ محفظه درایو ۳.۵ اینچی NVMe/SAS/SATA و تا ۴ اسلات PCIe 4.0 x16

  • CPU: Dual sockets P+ (LGA-4189), supports 3rd Gen Intel® Xeon® Scalable processors
  • Chipset: Intel® C621A

  • Memory: 16x DIMMs, up to 6TB DDR4-3200 (RDIMM/LRDIMM/Intel® Optane™ DCPMM)

  • Expansion:

    • 4x PCIe 4.0 x8 FHHL (option to combine into 2x PCIe 4.0 x16)

    • 2x PCIe 4.0 x16 FHHL

    • 2x PCIe 3.0 x2 NVMe M.2

    • Dual AIOM (OCP 3.0) slots with NCSI

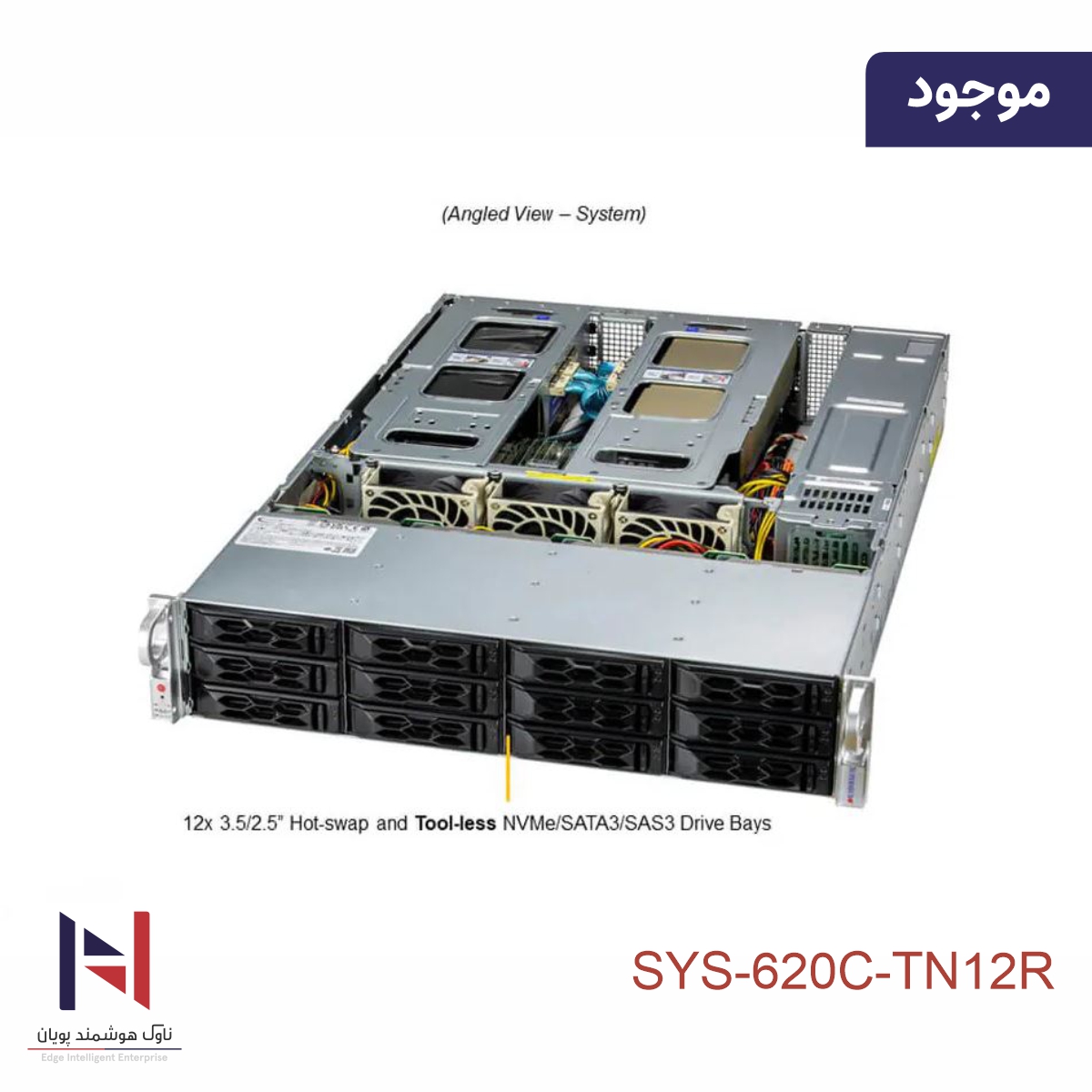

  • Storage: 12x 3.5″/2.5″ hot-swap hybrid NVMe/SATA/SAS drive bays

  • Networking: 1 dedicated IPMI LAN port

  • Cooling: 3 heavy-duty fans with optimal speed control + air shroud

  • Power Supply: 1200W redundant Titanium level (100–240Vac / 200–240Vdc)

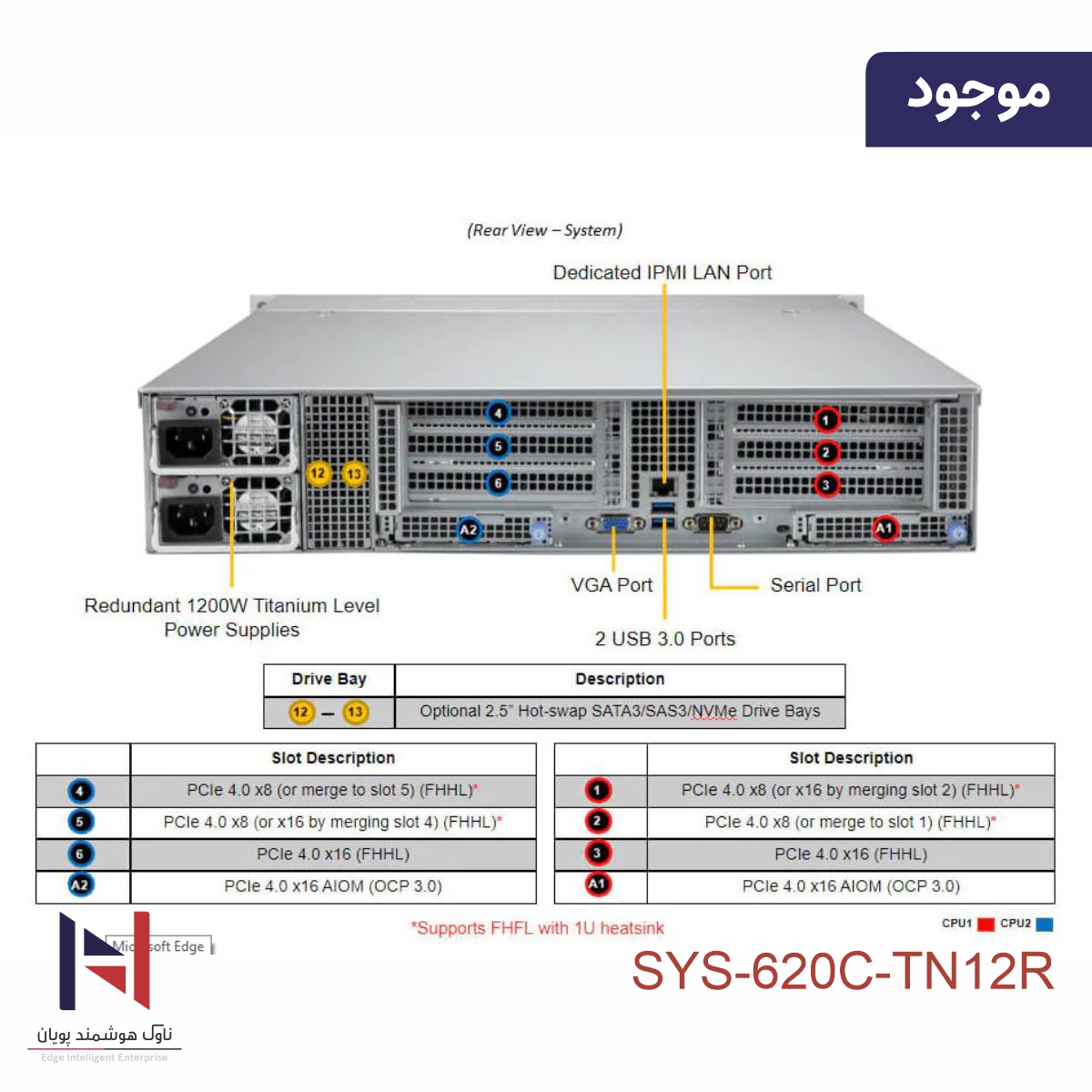

  • I/O Ports: 1x VGA, 1x COM, 2x USB 3.0 (rear)



Overview

سرور Supermicro SYS-620C-TN12R برای زیرساخت‌های ابری، میزبانی وب و محیط‌های IaaS طراحی شده است.
این سرور با ظرفیت ذخیره‌سازی بالا، توان پردازشی متعادل و امکان توسعه انعطاف‌پذیر PCIe 4.0، انتخابی ایده‌آل برای بهینه‌سازی عملکرد مراکز داده و دیتاسنترهای مدرن است.

کاربردهای اصلی Supermicro SYS-620C-TN12R

  • سرورهای وب و برنامه‌های کاربردی

  • CDN و نودهای Edge

  • فایروال‌ها و گیتوی های امنیتی

  • سرورهای DNS

  • زیرساخت‌های ابری و IaaS

  • بهینه‌سازی عملکرد دیتاسنتر

Specifications

Product SKUs
SuperServer SYS-620C-TN12R
Motherboard
Super X12DDW-A6
Processor
CPU
  • Dual Socket P4 (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count

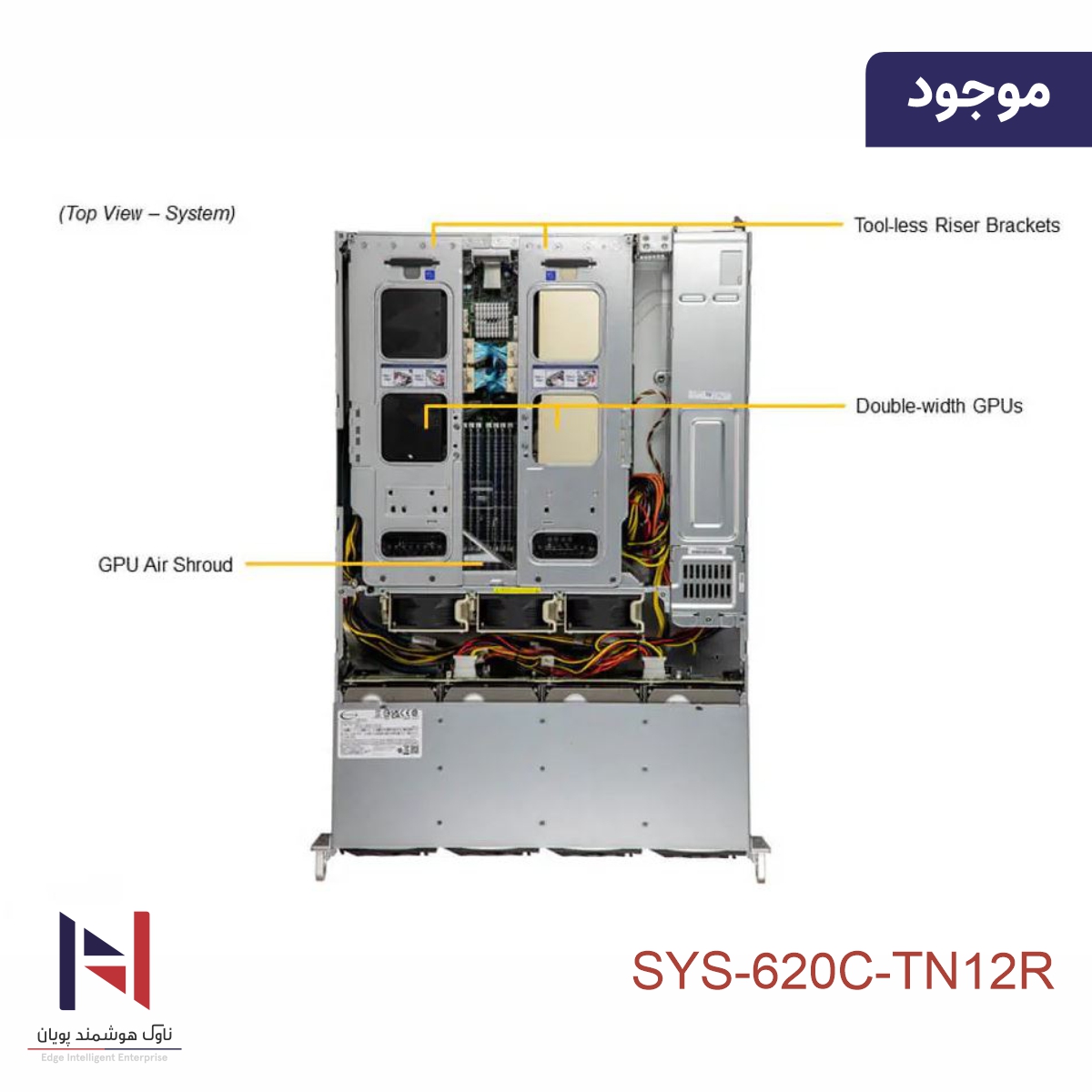

  • Up to 2 double-width or 6 single-width GPUs
Supported GPU
  • NVIDIA PCIe: RTX A6000, RTX A5000, RTX A4500, A30, A16, A2, A100
  • Intel PCIe: Intel Data Center GPU Flex 170
  • View GPU Options

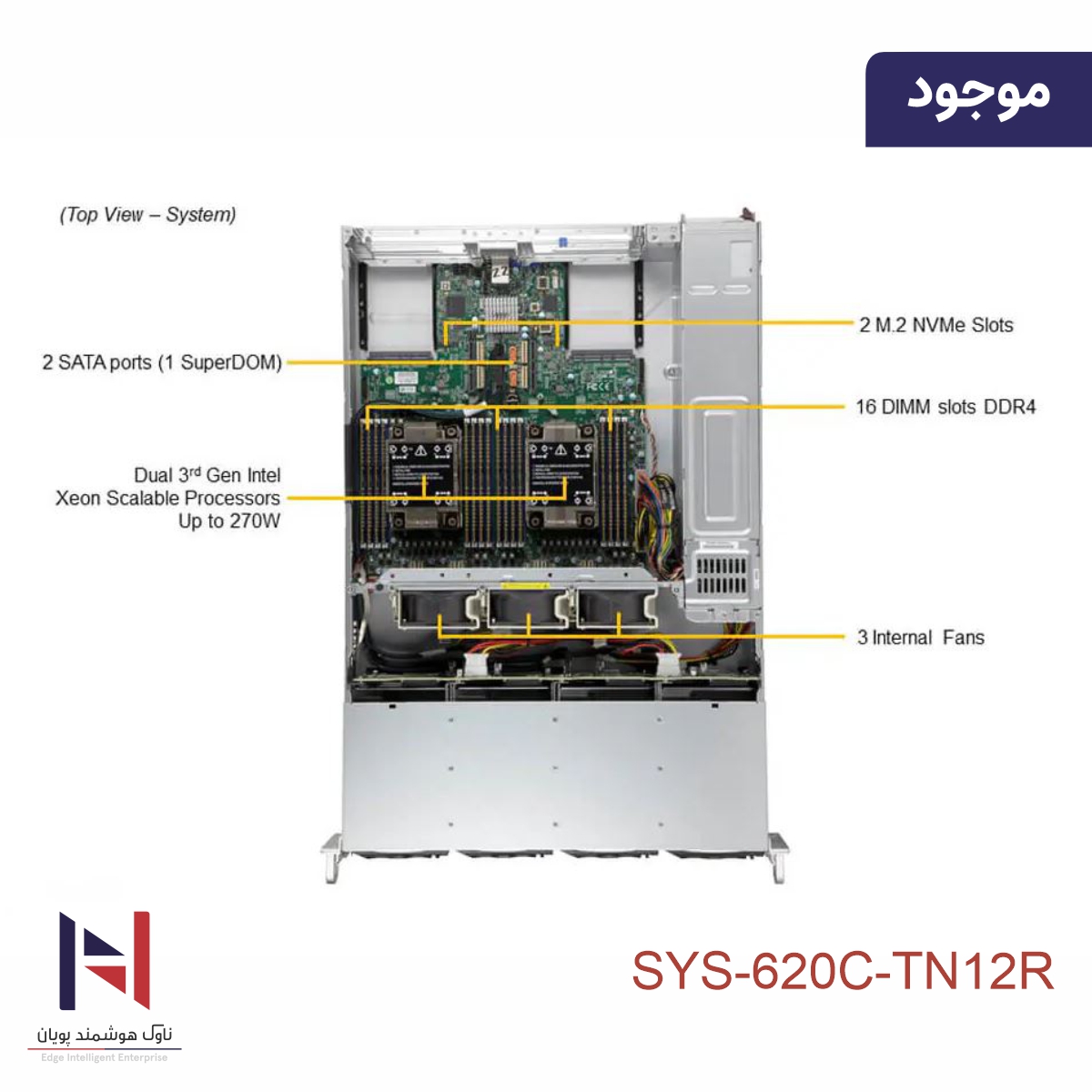

System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
Chipset
  • Intel® C621A
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.2 Gen1 Type-A ports(rear)
Video
  • 1 VGA port
Serial
  • 1 COM port(rear)
DOM
  • 1 SuperDOM (Disk on Module) port
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 8 Phase-switching voltage regulator
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-LA26TS-R1K23AWP1
Dimensions and Weight
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.5″ (648 mm)
Package
  • 11.4″ (H) x 26.7″ (W) x 34.5″ (D)
Weight
  • Gross Weight: 59 lbs (26.76 kg)
  • Net Weight: 33 lbs (15 kg)
Available Color
  • Black front & sliver body
Front Panel
LED
  • Drive activity
  • Network activity
  • Power status
  • Universal Information (UID)
Buttons
  • Power On/Off
  • Universal Information (UID)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 4 PCIe 4.0 x8 (in x16) FHFL double-width slots
    • 2 PCIe 4.0 x16 FHHL slots
    • 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
  • Option A
    • 2 PCIe 4.0 x16 FHFL double-width slots
    • 2 PCIe 4.0 x16 FHHL slots
    • 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
  • Option B
    • 4 PCIe 4.0 x16 FHFL double-width slots
    • 2 PCIe 4.0 x16 FHHL slots
    • 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
  • View AOC Options

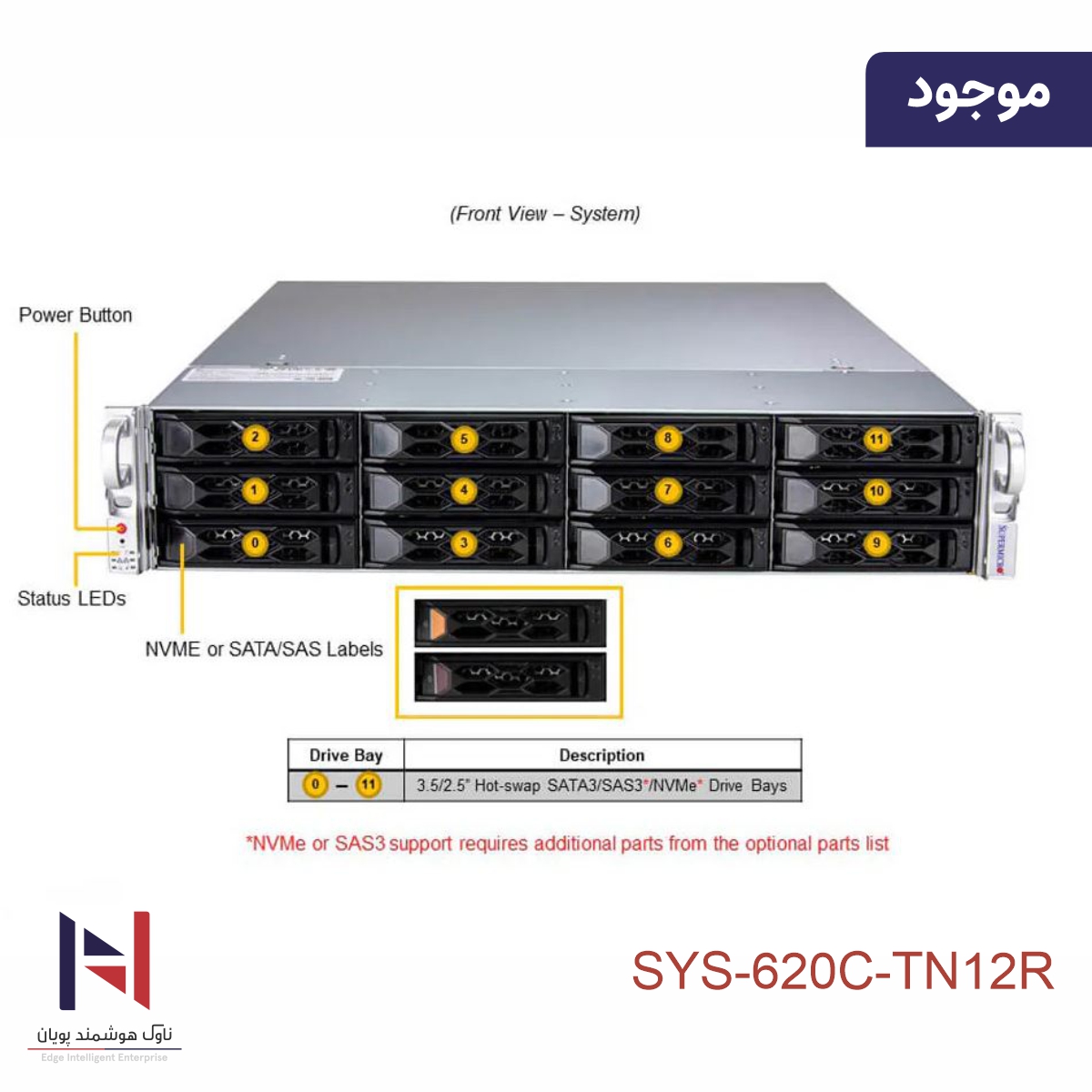

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 12 bays
    • 12 front hot-swap 3.5″ NVMe*/SAS*/SATA drive bays
  • Option A: Total 12 bays
    • 12 front hot-swap 2.5″ NVMe*/SAS*/SATA drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
M.2
  • 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280(default); VROC required for RAID)
  • View M.2 Options
System Cooling
Fans
  • Up to 3x 8cm heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
Power Supply
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
