Overview

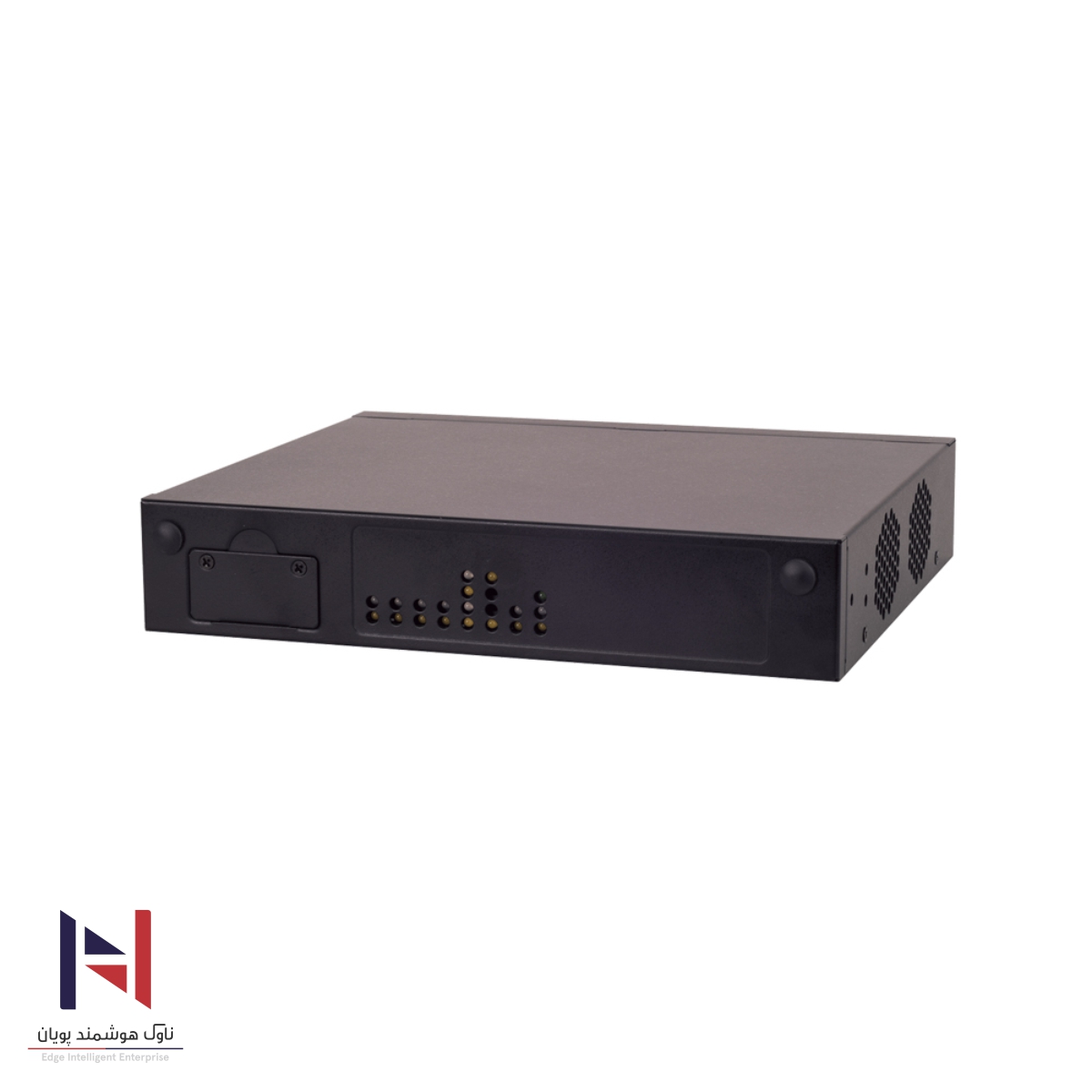

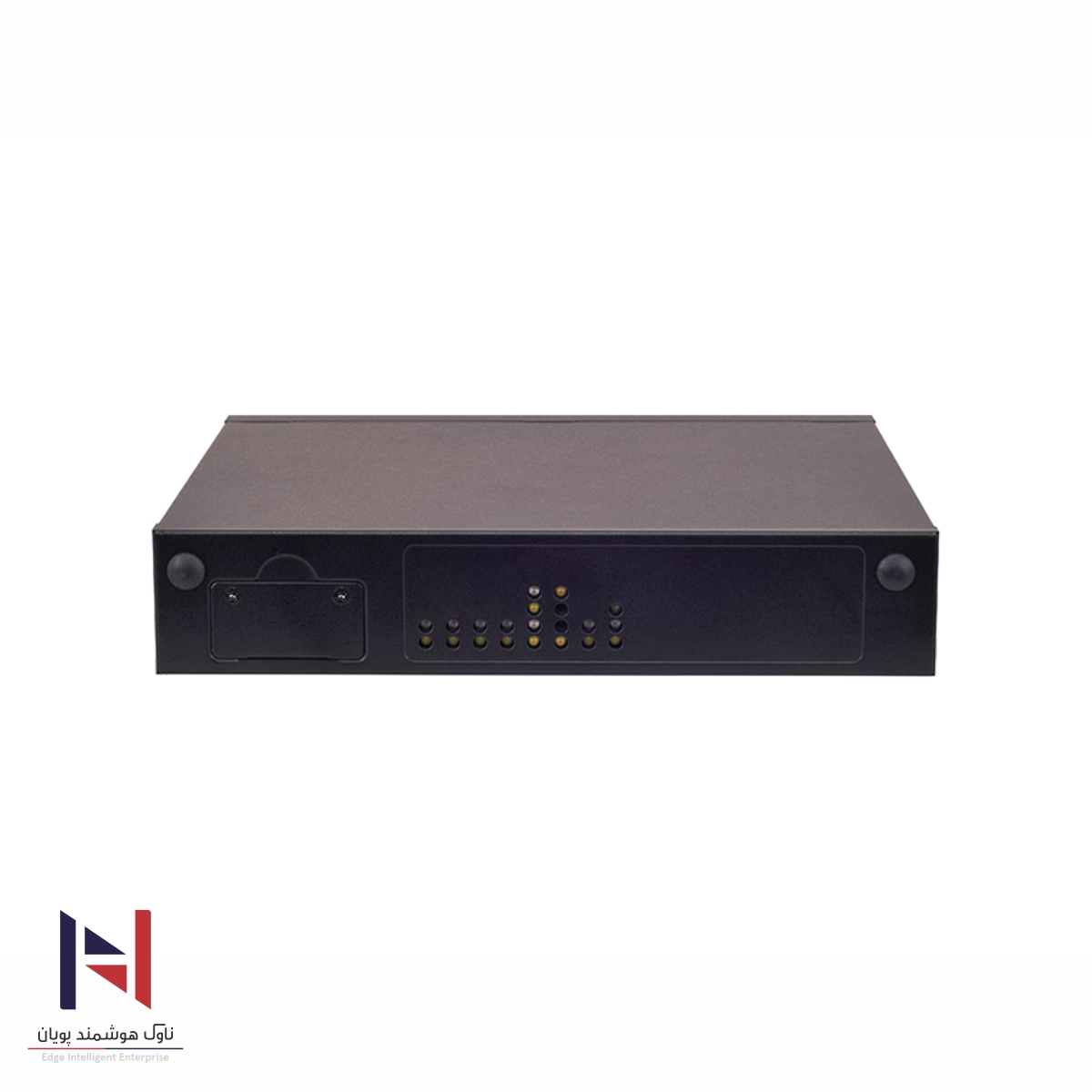

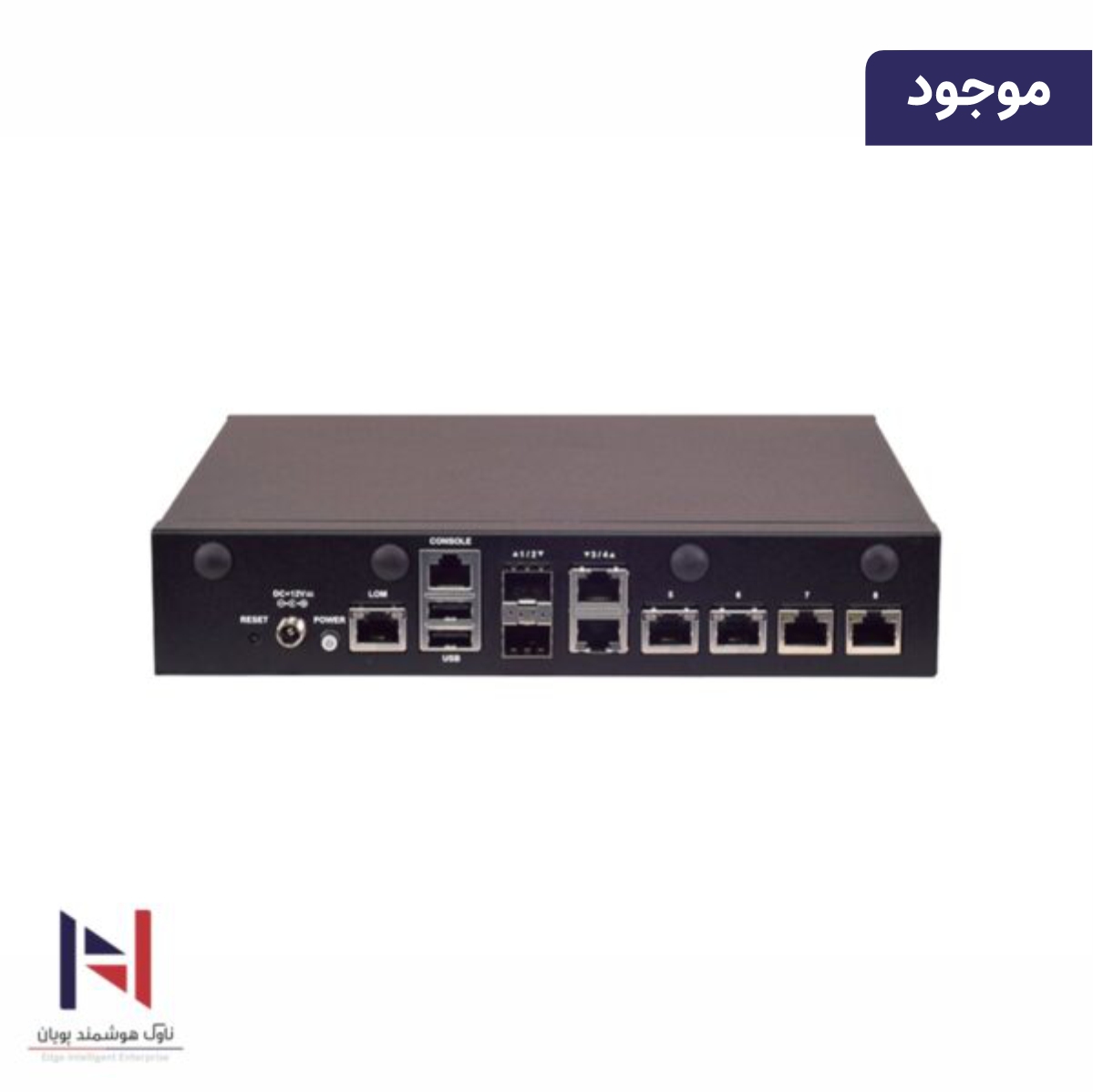

NCA-1515، یک شبکه افزار رومیزی با پردازنده Intel® Atom® C3000 (با نام رمز Denverton)، دارای عملکرد قوی و فناوری QuickAssist اینتل است که شتاب رمزنگاری و عملکردهای تجاری LAN را در فرم 231mm x 200mm x 44mm (WxD) ارائه می دهد. عامل.
Specifications
Platform
| CPU | Intel® Atom® C3000 (Denverton) |
| Chipset | SoC |
| BIOS | AMI SPI Flash BIOS |
| Memory Technology | DDR4 2400/2133/1866MHz ECC DIMM |
| Memory Capacity | SKU A/B/D/E/F: 64GB SKU C: 32GB |
| Memory Socket | 2 x 260-pin SODIMM |
Storage
| SATA storage | 1 x EMMC 8GB |
I/O
| Ethernet Ports | 4x GbE RJ45 Intel® SoC Integrated MAC 2x GbE RJ45 Intel® i350 and (by SKU) 2x GbE SFP Intel® i350 (by SKU) |
| Console | 1 x RJ45 |
| Security acceleration | Intel® QuickAssist Technology |
| USB 2.0 | 2 x Type A |
| TPM | TPM 2.0 |
Power and Mechanical
| Power input | 1 x DC Jack |
| Type/Watt | 36W or 60W Power Adapter (By SKU) |
| Expansion | 2 x Mini-PCIe (PCIe/USB2.0), 1 x M.2 2242 B Key (USB3.0), 2 x Nano SIM for M.2 (Dedicated To An Optionally Installed LTE Module) |
| Reset | 1 * reset button |
| Processor cooling | Passive CPU Heatsink |
| System cooling | 1 x Cooling Fan w/ Smart Fan (SKU A~E) ; 2 x Cooling Fans w/ Smart Fan (SKU F) |
OS and Certifications
| Certifications | SKU A~E: RoHS, CE/FCC CLASS B, UL, VCCI, RCM, CCC ; SKU F (By Project): Compliance Pendng |
Physical and Environmental
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 40°C |
| Operating humidity | 5% to 95% (non-condensing) |
| Dimensions (W x H x D) | 231 mm x 44 mm x 200 mm (9.09″ x 1.73″ x 7.87″) |
| Weight | 1.2 kg (2.64 lbs) |
| Watchdog | Yes |
| Internal RTC | Yes |
Order Information
| NCA-1515A | C3758, 8-core, 2x DDR4 ECC SODIMM, 4x GbE RJ45 w/ 1 Pair of Gen3 Bypass, 2x GbE SFP w/ LED & 2x GbE RJ45, w/BMC, 60W Adapter |
| NCA-1515B | C3558, 4-core, 2x DDR4 ECC SODIMM, 4x GbE RJ45 w/ 1 Pair of Gen3 Bypass, 2x GbE SFP w/ LED & 2x GbE RJ45, w/BMC, 60W Adapter |
| NCA-1515C | C3308, 2-core, 1x DDR4 ECC SODIMM, 4x GbE RJ45 w/o Bypass, 36W Adapter |
| NCA-1515D | C3558, 4-core, 2x DDR4 ECC SODIMM, 4x GbE RJ45 w/ 1 Pair of Gen3 Bypass & 2x GbE SFP w/ LED, w/ BMC, 60W Adapter |
| NCA-1515E | C3858, 12-core, 2x DDR4 ECC SODIMM, 4x GbE RJ45 w/ 1 Pair of Gen3 Bypass, 2x GbE SFP w/ LED & 2x GbE RJ45, w/BMC, 60W Adapter |
| NCA-1515F (By Project) | C3958, 16-core, 2x DDR4 ECC SODIMM, 4x GbE RJ45 w/ 1 Pair of Gen3 Bypass, 2x GbE SFP w/ LED & 2x GbE RJ45, w/BMC, 60W Adapter |
Order Information (Whitebox)
| NCA-1515A قیمت در آیتی بازار | C3758, 8-core, 2x DDR4 ECC SODIMM, 4x GbE RJ45, 2x GbE SFP & 2x GbE RJ45, 60W Adapter |
NCA-1515B | C3558, 4-core, 2x DDR4 ECC SODIMM, 4x GbE RJ45, 2x GbE SFP & 2x GbE RJ45, 60W Adapter |
NCA-1515C | C3308, 2-core, 1x DDR4 ECC SODIMM, 4x GbE RJ45, 36W Adapter |
NCA-1515D | C3558, 4-core, 2x DDR4 ECC SODIMM, 4x GbE RJ45, 2x GbE SFP w/ LED, 60W Adapter |
NCA-1515E | C3858, 12-core, 2x DDR4 ECC SODIMM, 4x GbE RJ45, 2x GbE SFP & 2x GbE RJ45, 60W Adapter |
NCA-1515F (By Project) | C3958, 16-core, 2x DDR4 ECC SODIMM, 4x GbE RJ45, 2x GbE SFP & 2x GbE RJ45, 60W Adapter |
