Overview

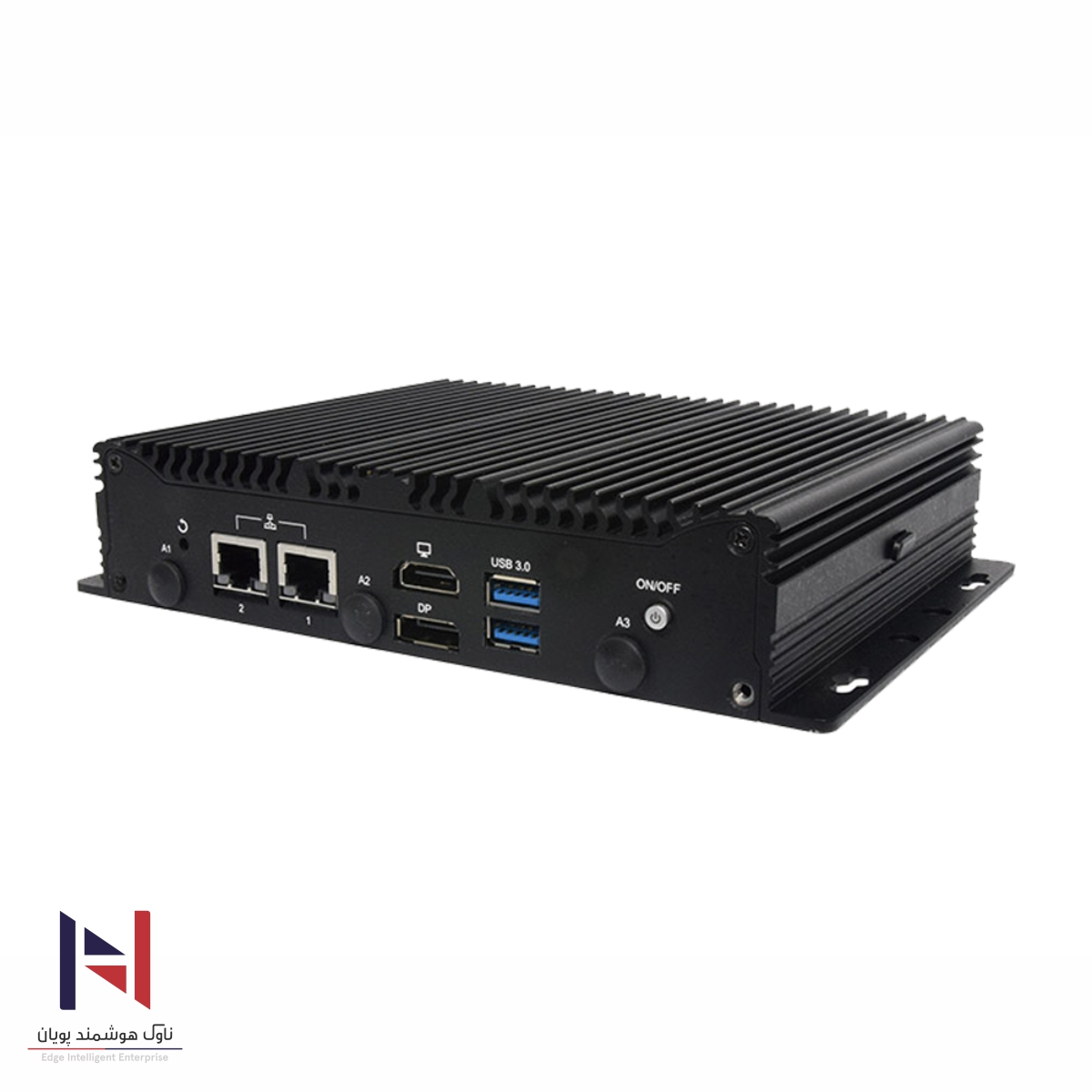

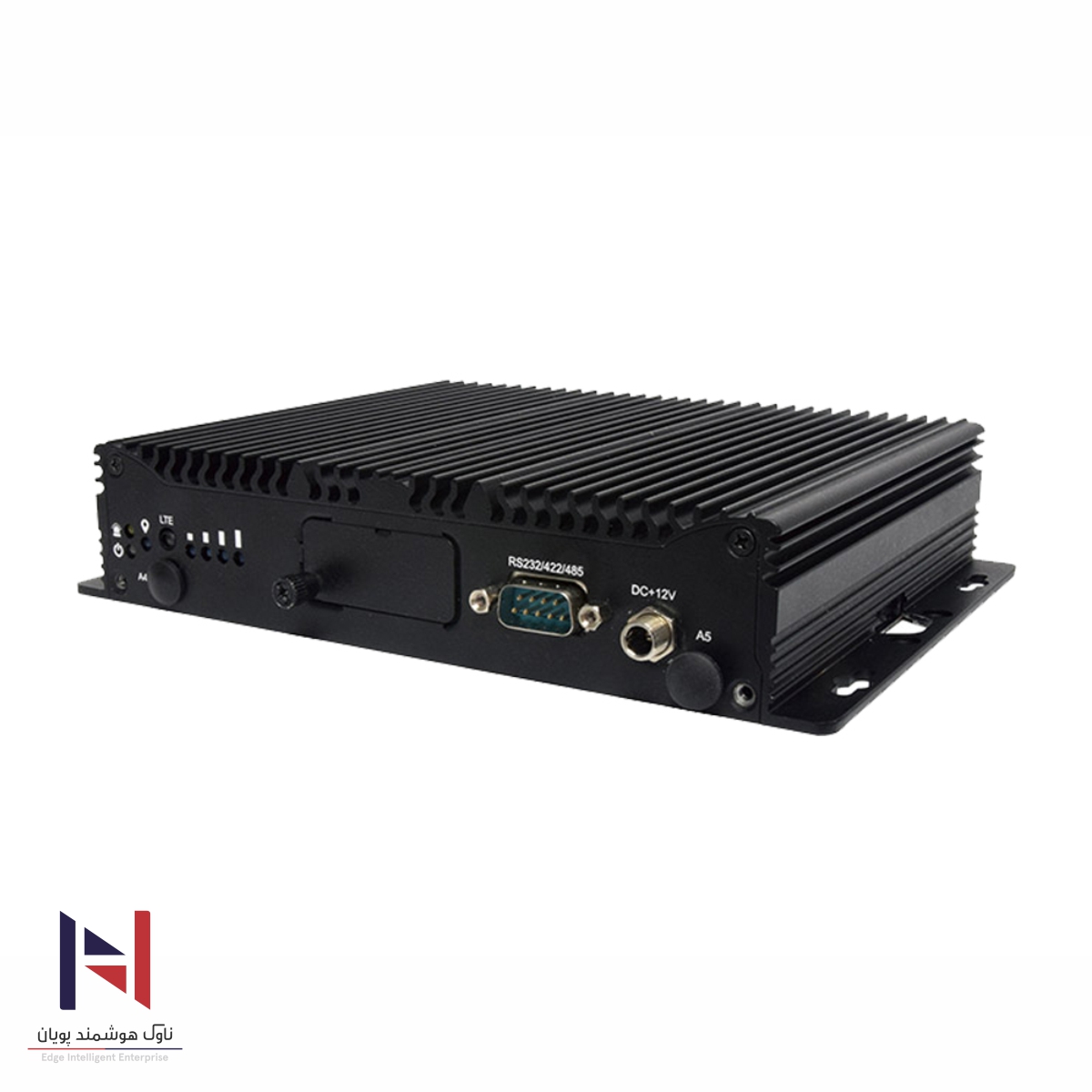

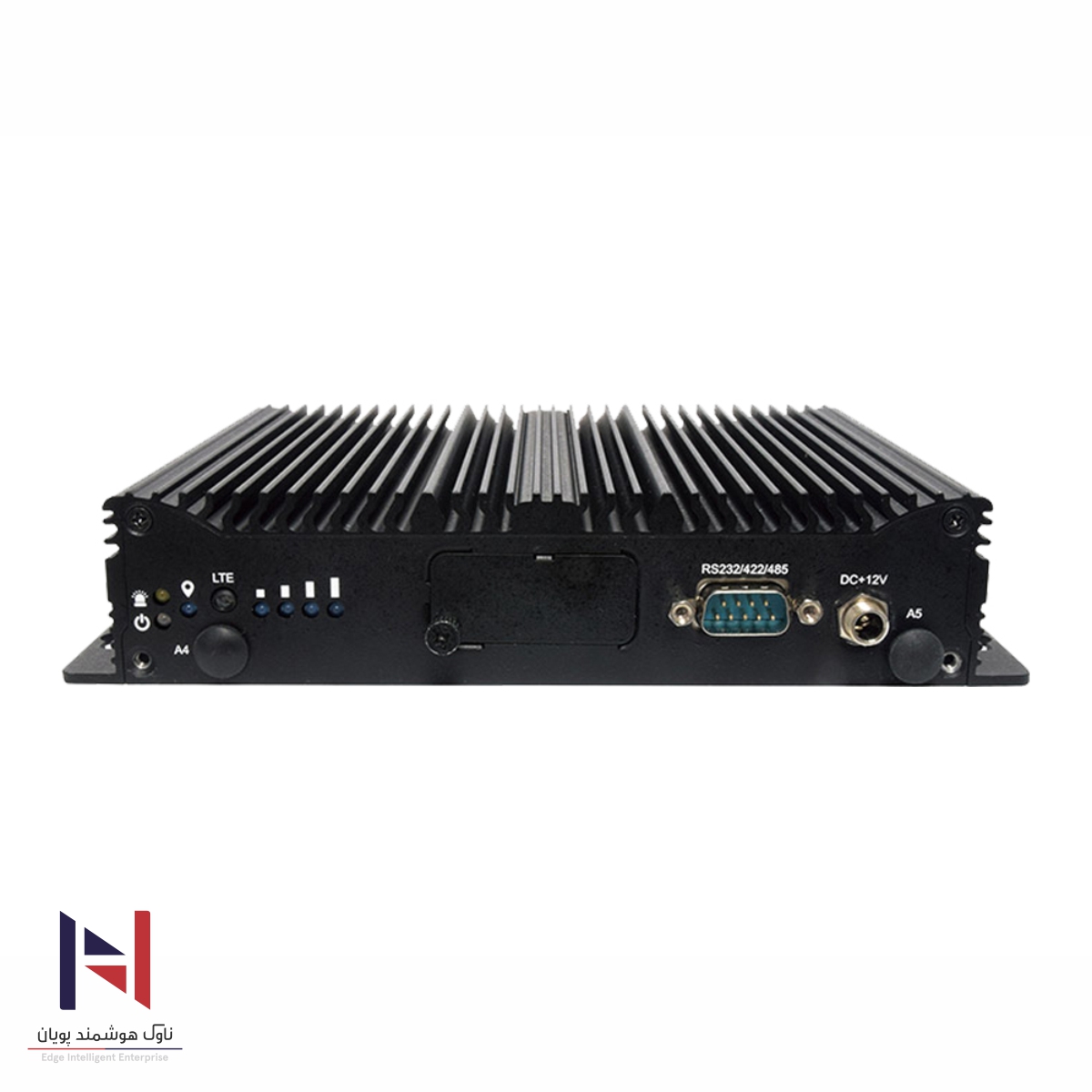

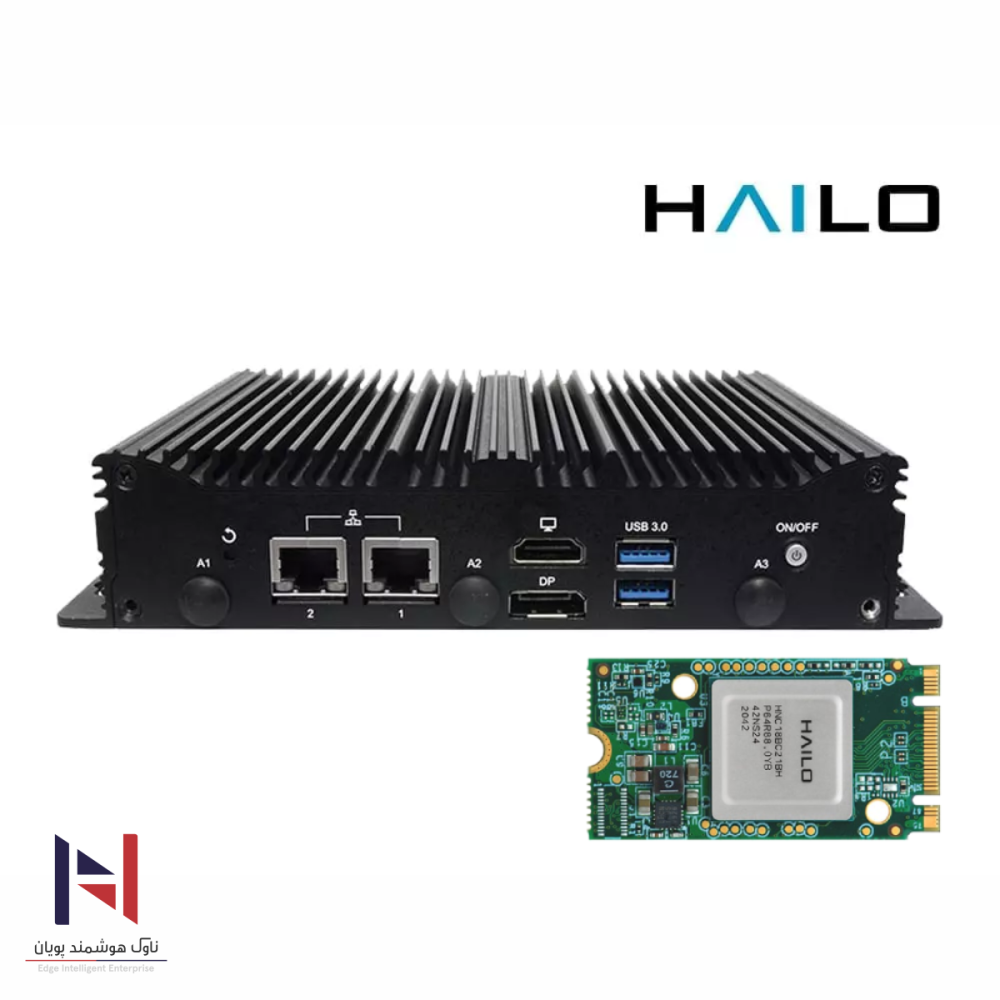

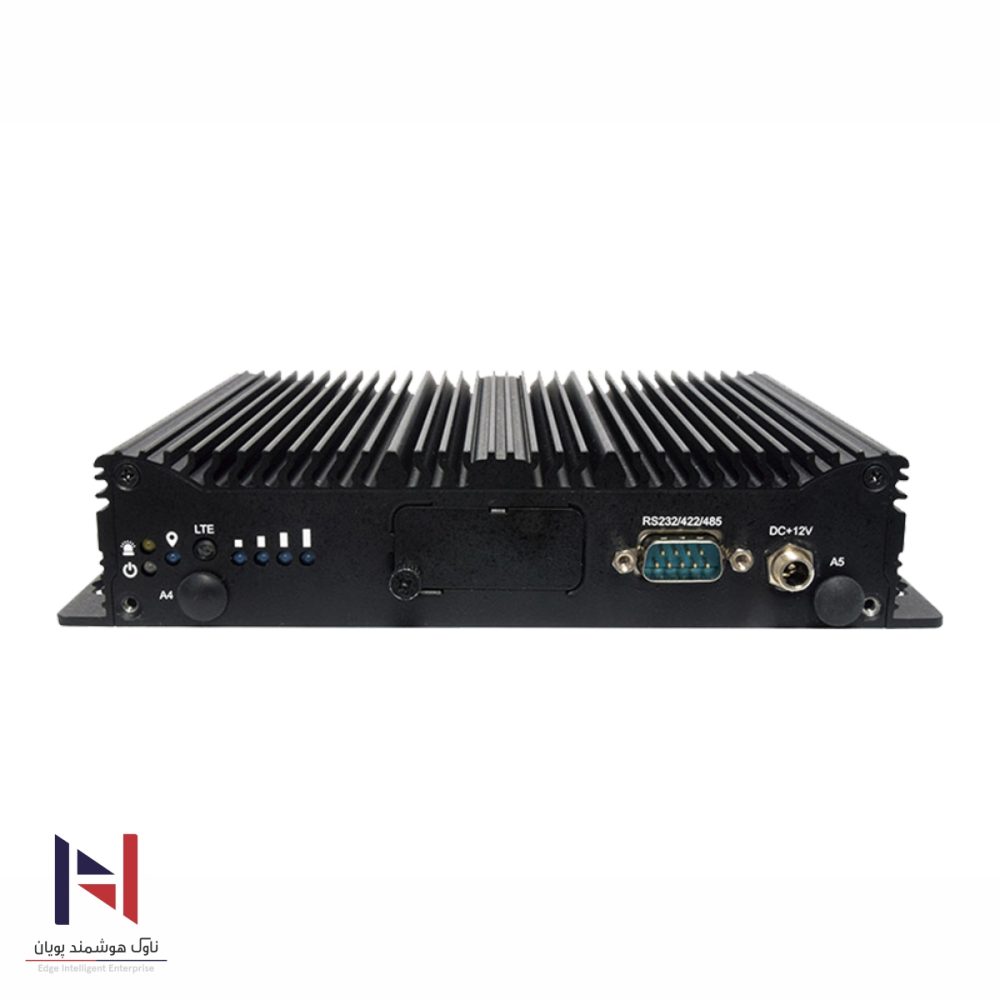

LEC-7242H، یک دستگاه هوش محاسباتی لبه با GPU و 1 عدد M.2 B+M Key Hailo-8™ پیشنصب شده است، یک کامپیوتر با قدرت بالا با پردازنده Intel® Apollo Lake میباشد.
Specifications
Processor System
| CPU | Intel Celeron J3455 (Apollo Lake) |
| Frequency | 2.4GHz / 1.8GHz |
| Core Number | 2C/4C |
| Chipset | SOC |
| BIOS | AMI SPI Flash BIOS, 16Mbit |
| AI Processor | Hailo-8™ AI Processors (via M.2 B+M Key ) |
Fanless
| Yes |
Memory
| Technology | Onboard Non-ECC LPDDR4 2400 |
| Max. Capacity | 8 GB |
Graphic
| Controller | Intel® HD Graphics 500 |
| Display | 1x HDMI, 1x Display Port |
Ethernet
| Controller | Intel® i210-AT / Intel® i210-IT |
| Speed | 10/100/1000 Mbps |
| Interface | 2x RJ45 |
Storage
| Type | 256GB SSD |
I/O
| Serial Port | 1x RS-232/422/485, DB9 Male |
| USB 3.0 | 2x Type A |
| Power-On/Reset Button | 1x Power On/Off, 1x Reset |
| LED | Power On Status/Alarm/GPS Status/ LTE Signal Level Status |
| Antenna Hole | 4x SMA Antenna Holes |
Expansion Interface
| M.2 | 1x M.2 3042 B+M Key Socket w/ Dual SIM For LTE Or WiFi |
| Mini-PCIe | 1x Mini PCIe Socket w/ Dual SIM For LTE |
Watchdog Timer
| Watchdog Timer 1~255 Level Time Interval System Reset, Software Programmable |
Power
| Power Type | ATX |
| Power Supply Voltage | +12VDC |
| Connector | DC Jack with Lock |
| Adapter | Rated Input Range: 100~240Vac, 60W Output Rated Voltage: +12Vdc |
| Power Consumption (Idle) | 6.3W |
| Power Consumption (Full Load) | 11.8W |
Environment
| Operating Temperature | 0C~50C (SKU A/B) -20C~70C (SKU C/D) |
| Storage Temperature | -30°C~70°C |
| Relative Humidity | 5%~95% (Non-condensing) |
| Vibration | IEC 60068-2-64 |
Mechanical
| Dimension (W x H x D) | 168 x 40 x 145 mm |
| Construction | Aluminum Extrusion with SGCC |
| Weight | 1 KG |
| Mounting | Wallmount |
Validated OS
| Microsoft Windows | Win 10 IoT 2019 |
| Linux | Linux Debian 10 (Linux kernel v4.1) |
MTBF(hours)
| Time | 95,480 |
Certification
| EMC | CE/FCC Class A |
| Safety | UL |
| Green Products | RoHS |
| Others | PTCRB (For EG25GGB-MINIPCIE-S) |
Specifications
| LEC-7242H | Intel Celeron N3350, 8GB RAM, 1x M.2 B+M Key Hailo-8™ AI Accelerator, 256GB SSD |
