Overview
دستگاه امنیت سایبری صنعتی مجهز به پردازنده Intel® Atom™ E3845 با عملکرد بالا و قابلیت اطمینان ویژه برای محافظت از شبکه‌های حساس صنعتی در برابر تهدیدات سایبری.
Specifications
Processor System
| CPU | Intel Atom E3845 |
| Frequency | 1.91 GHz |
| Core Number | 4 |
| BIOS | AMI SPI Flash BIOS |
| Chipset | N/A |
Memory
| Technology | DDR3L, 1333 MHz |
| Max. Capacity | 8 GB |
| Socket | 1 x 204-pin SODIMM |
Graphic
| Controller | Intel HD Graphics |
| VGA pin-header | 1 x internal VGA pin-header |
Ethernet
| Controller | Intel i210-IT |
| Speed | 10/100/1000 Mbps |
| Interface | 6032B: 5 x RJ45; 6032C: 5 x RJ45 & 2 SFP; 6032D: 5 x RJ45; 6032F: 3 x RJ45 & 4 SFP |
| LAN Bypass | 6032B: 2 pairs, 6032C/D/F: 1 pair |
| Magnetic Isolation Protection | 1.5 KV built-in |
Storage
| Type | SATA |
| Installation | 1x SATA connector, optional 2.5” drive bay |
I/O
| Serial Port | LEC-6032C/D: 1 x DB9 RS232, LEC-6032B: x Internal pin header (RS-232 only) |
| ESD Protection | 15KV ESD Protection |
| USB 3.0 / USB 2.0 | 1 x USB 3.0 / 1 x USB 2.0 |
| Power-On/Reset Button | Internal reset button |
| LED | HDD,RUN,PWR,SFP |
Watching Timer
| Watchdog timer 256 level time interval system reset, software programmable |
Power
| Power Supply Voltage | 12 ~ 36 Vdc, 6032E: 24 Vdc |
| Connector | Phoenix contact 6-pin connector w/ lock |
| Dual power inputs | Yes |
| Power Consumption (Idle) | TBD |
| Power Consumption (Full Load) | TBD |
| Power Adaptor | None |
Environment
| Operating Temperature | -40 ~ 75ºC |
| Storage Temperature | -40 ~ 85ºC |
| Relative Humidity | 5% ~ 95%, non-condensing |
Mechanical
| Dimension (W x H x D) | 78 x 146 x 127 mm |
| System Cooling | Fanless |
| Construction | Aluminum + SGCC |
| Weight | 1 kg |
| Mounting | DIN rail or Wall mount |
Driver Support
| Microsoft Windows | Windows 7, Windows 7 Embedded |
| Linux | Kernal 3.X |
Certification
| EMC | CE/FCC Class A |
| Safety | None |
Order Information

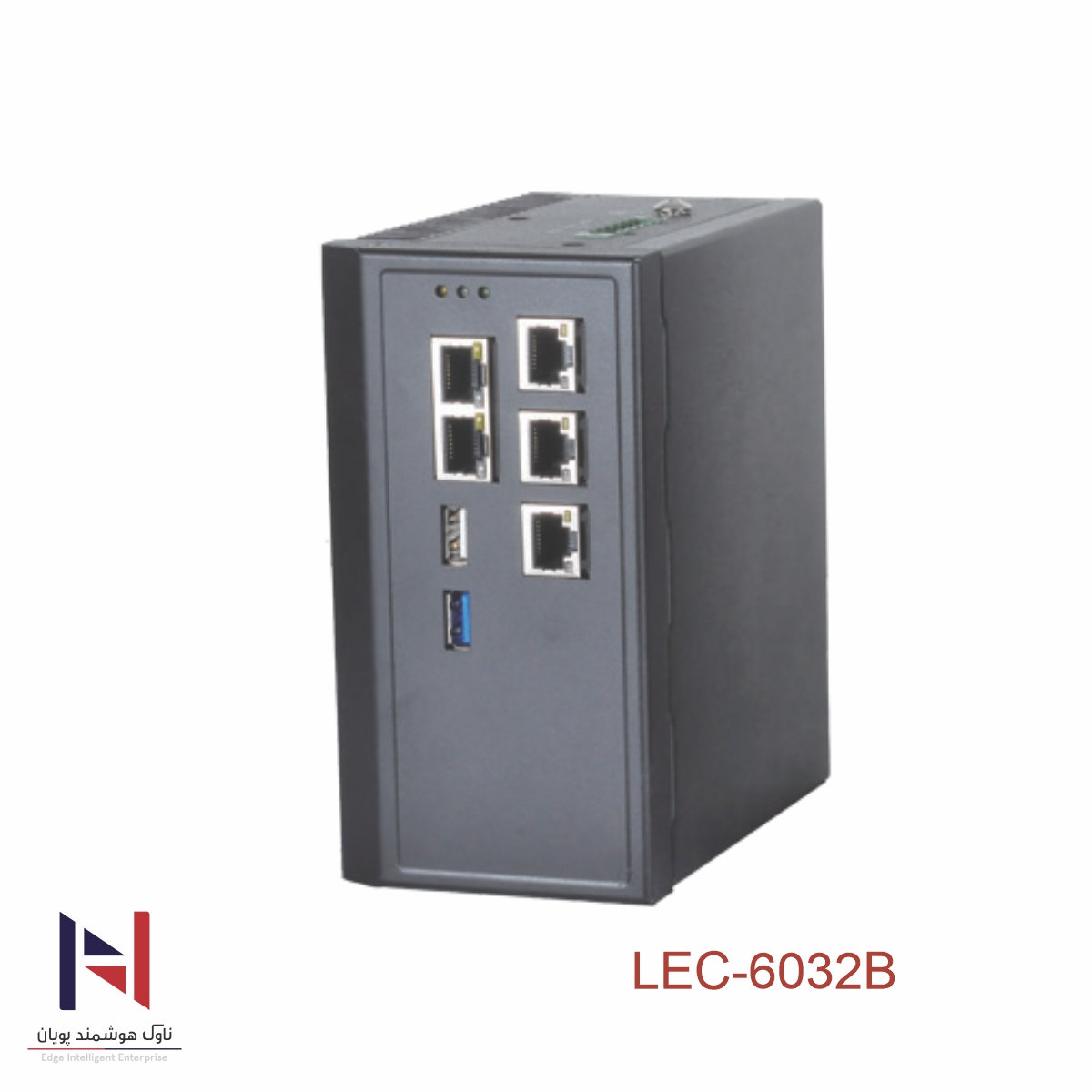

| LEC-6032B | Wide Temperature DIN rail Fanless Box PC with Intel Atom E3845 processor, 5 x GbE RJ45 with 1 pair Gen 3 bypass, 1 x USB 3.0 host, 1 x USB 2.0 host. |
| LEC- | Wide Temperature DIN rail Fanless Box PC with Intel Atom E3845 processor, 5 x GbE RJ45 with 1 pair Gen 3 bypass, 2 x GbE SFP, 1 x USB 3.0 host, 1 x USB 2.0 host, 1 x DB9 RS232 |

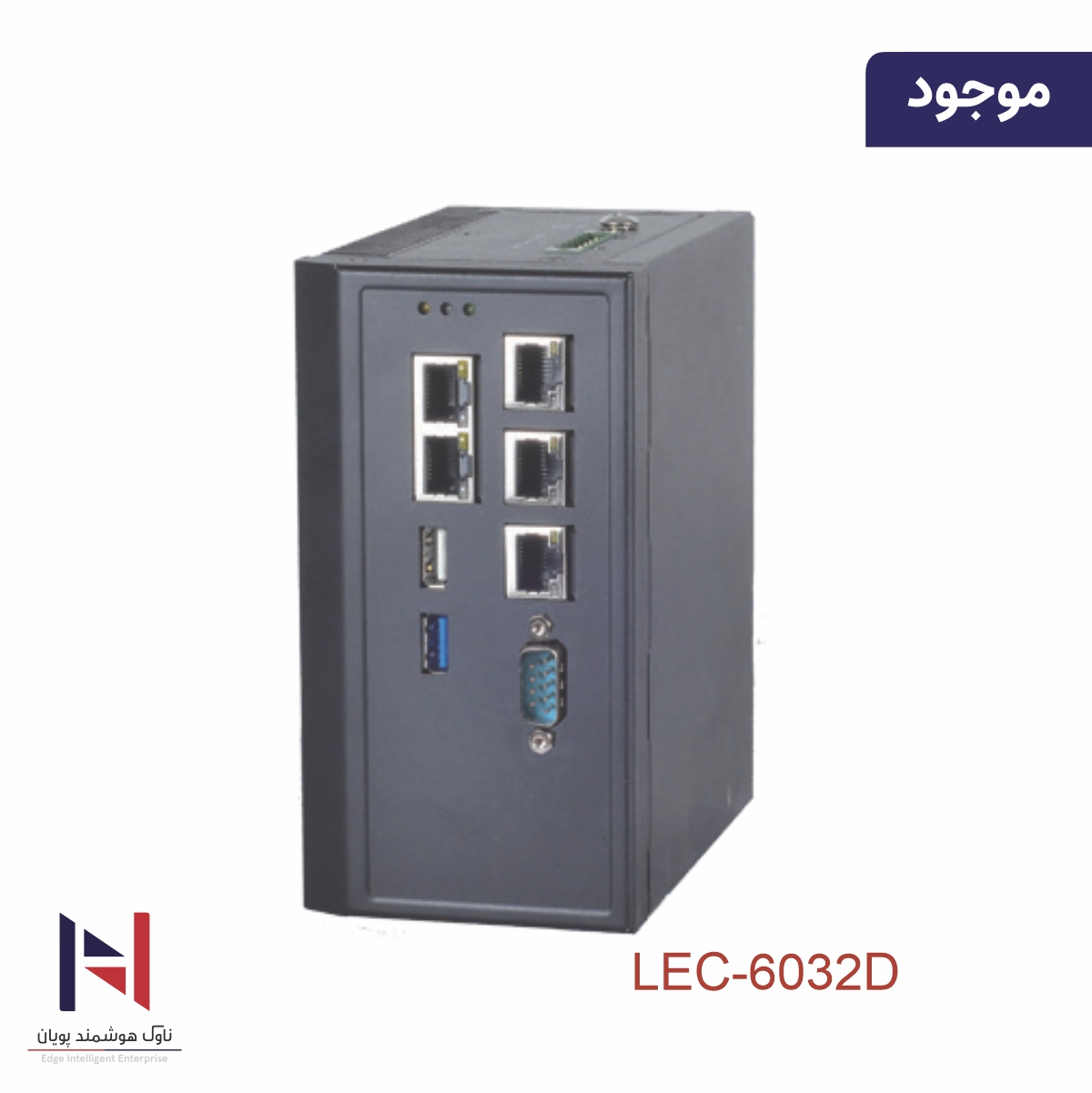

| LEC-6032D | Wide Temperature DIN rail Fanless Box PC with Intel Atom E3845 processor, 5 x GbE RJ45 with 2 pair Gen 3 bypass, 1 x USB 3.0 host, 1 x USB 2.0 host ,1 x DB9 RS232 |
| LEC-6032F | Wide Temperature DIN rail Fanless Box PC with Intel Atom E3845 processor, 3 x GbE RJ45 with 1 pair Gen 3 bypass, 4 x GbE SFP, 1 x USB 3.0 host, 1 x USB 2.0 host ,1 x DB9 RS232 |
