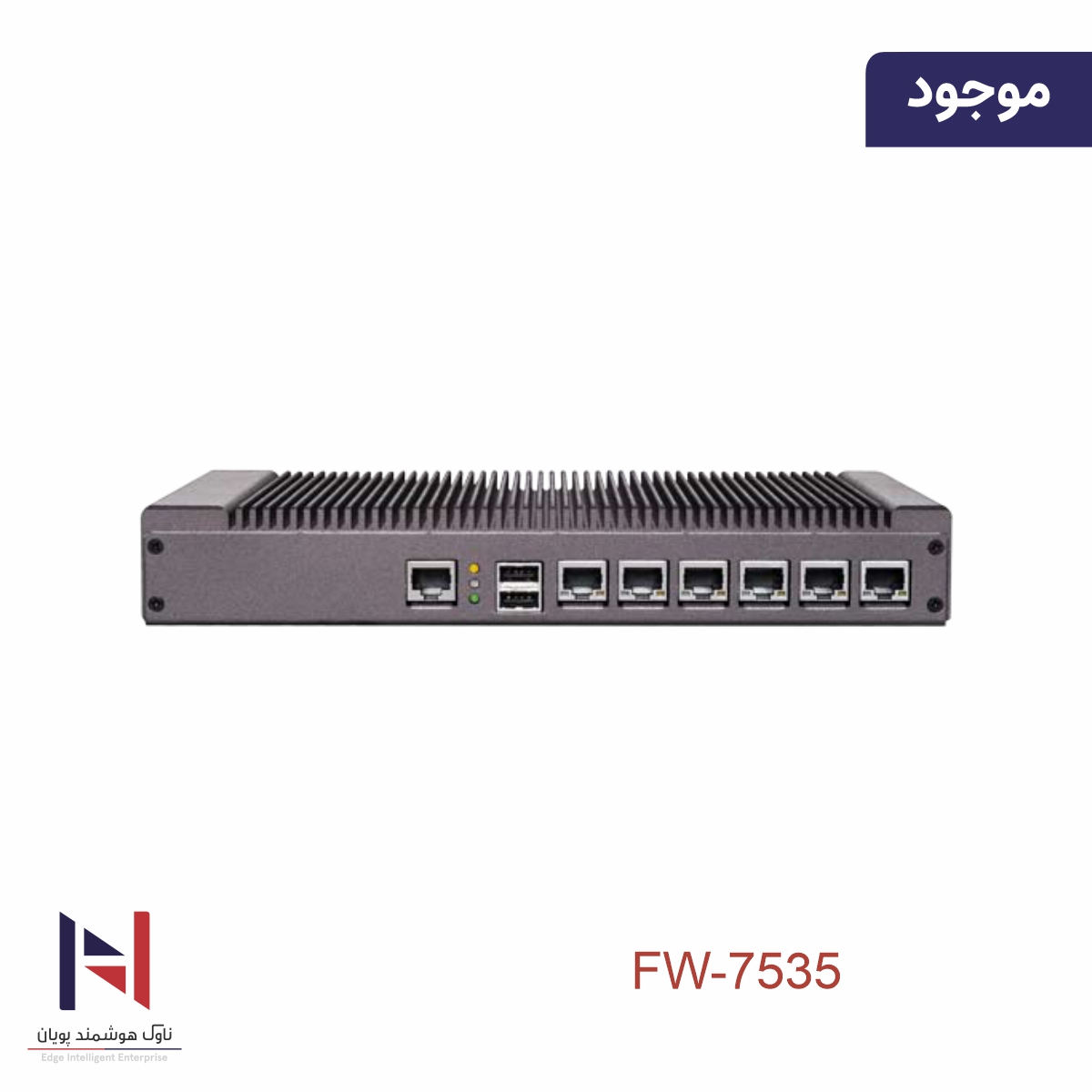

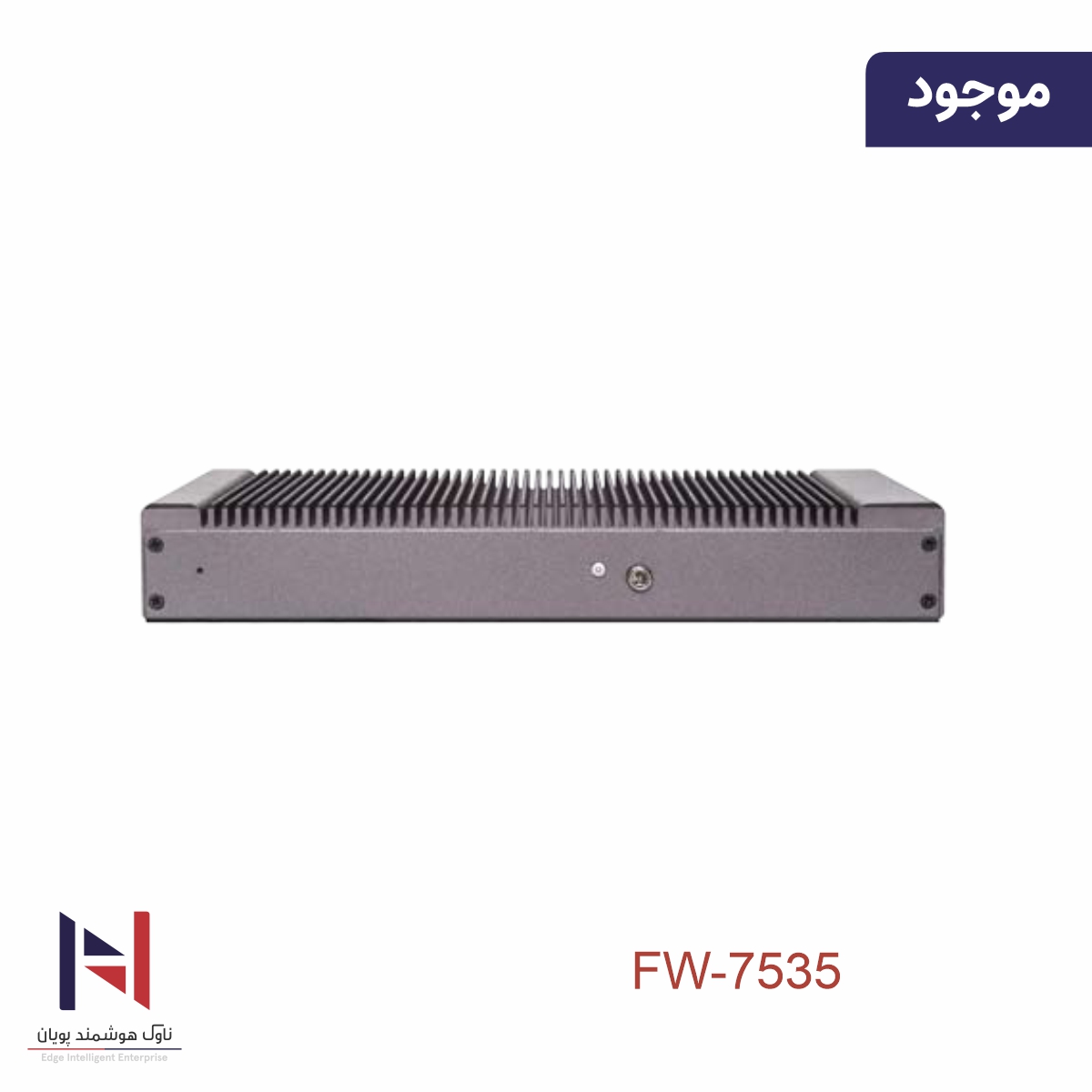

FW-7535

شبکه افزار رومیزی جمع‌وجور با پردازنده دو هسته‌ای Intel Atom و شش پورت شبکه

  • Processor — Intel Atom D410 or D510 @ 1.66GHz
  • Chipset — Intel ICH8M
  • Memory — Up to 4GB DDR2 667/800MHz, non-ECC via 1 x 200P SODIMM
  • Expansion — 1 x CompactFlash slot
  • Storage — 1 x 2.5-inch HDD bay; 1 x SATA port
  • Expansion — 1 x Mini PCIe
  • Networking — 6 x gigabit Ethernet ports (1 x Intel 82574L; 5 x Intel 82583V); 1 x bypass pair option
    Other I/O:
    – 1 x RJ45 Console
    – 2 x USB 2.0
  • Other features — Watchdog; internal RTC with Li battery; 2 x passive heatsinks (CPU and system)
  • Operating temperature — 32 to 104 deg. F (0 to 40 deg. C)
  • Dimensions — 7.5 x 5.7 x 1.4 inches (190 x 145 x 36mm)
  • Weight — 2.64 lbs (1.2 k)
  • Power — 60W adapter; 12 DC input
  • Operating system — Linux 2.4 and up; Windows 2000, 2003, and XP

Overview

 FW-7535 از شرکت لنر یک شبکه افزار رومیزی با طراحی بدون فن است که از پردازنده دو هسته‌ای Intel Atom D510 با فرکانس ۱٫۶۶ گیگاهرتز بهره می‌برد. این دستگاه دارای ۶ پورت گیگابیتی، ۲ پورت USB 2.0، پورت کنسول RJ45 و اسلات Mini-PCIe برای گسترش است. با پشتیبانی از حافظه DDR2 تا ۴ گیگابایت و قابلیت نصب هارد ۲٫۵ اینچی یا کارت CompactFlash، FW-7535 گزینه‌ای مناسب برای کاربردهای امنیت شبکه، فایروال و روترهای صنعتی است.

Specifications

Platform
Processor OptionsIntel Atom D410 or Dual Core D510 onboard
ChipsetIntel ICH8M
BIOS
AMI BIOS 16Mbit SPI Flash ROM



System Memory
TechnologyDDR2 667/800 MHz
Max. Capacity4 GB
Socket2 x 200P So-DIMM



OS Support
Windows 2000, 2003, XP, 7, Linux kernel 2.4 and up,
OpenBSD, FreeBSD




Storage
HDD Bays1 x 2.5”
CompactFlash1 x Type II CompactFlash
Networking
Ethernet Ports6 x GbE RJ45
Bypass1 pair G2
Controllers1 x Intel 82574L
5 x Intel 82583V
Ethernet ModulesN/A
Management PortN/A
Security AccelerationN/A
I/O Interface
Console1 x RJ45
USB2 x USB 2.0
IPMI via OPMA slotN/A
Expansion
PCIe1 x Mini-PCIe (with USB signal only)
PCIN/A
Cooling
ProcessorCPU Passive Heatsink
SystemOptional cooling Fan
Environmental Parameters
Temperature, ambient operating / storage0 ~ 40º C / -20~70º C
Humidity (RH), ambient
operating / ambient
non-operating
 5~95%, non-condensing
Miscellaneous
LCD ModuleN/A
WatchdogYes
Internal RTC with Li
Battery
Yes
Physical Dimensions
Dimensions (WxHxD)268 x 40 x 145 mm
Weight1.2 kg
Power
Type / Watts12V/5A 60W Power Adapter
InputAC 100~240V @50~60 Hz
Approvals and Compliance
CE emission, FCC Class A, RoHS, UL



Order Information

FW-7535APineview D-410 CPU 1.6GHz; w/ 2 x SODIMM slots,
1 pair bypass, desktop with fan
 FW-7535BPineview D-510 CPU 1.6GHz; w/ 2 x SODIMM slot,
1 pair bypass, desktop with fan
FW-7535CPineview D-410 CPU 1.6GHz; w/ 2 x SODIMM slots,
desktop with fan
FW-7535DPineview D-510 1.6GHz; w/ 2 x SO-DIMM slots,
desktop with fan
FW-7535E Pineview D-410 CPU 1.6GHz w/ 1 x SODIMM slot,
1 pair bypass, fanless
FW-7535F Pineview D-510 CPU 1.6GHz; w/ 1 x SODIMM slot,
1 pair bypass, fanless
FW-7535GPineview D-410 CPU 1.6GHz; w/ 1x SODIMM slot, fanless
FW-7535H Pineview D-510 CPU 1.6GHz; w/ 1x SODIMM slot, fanless
